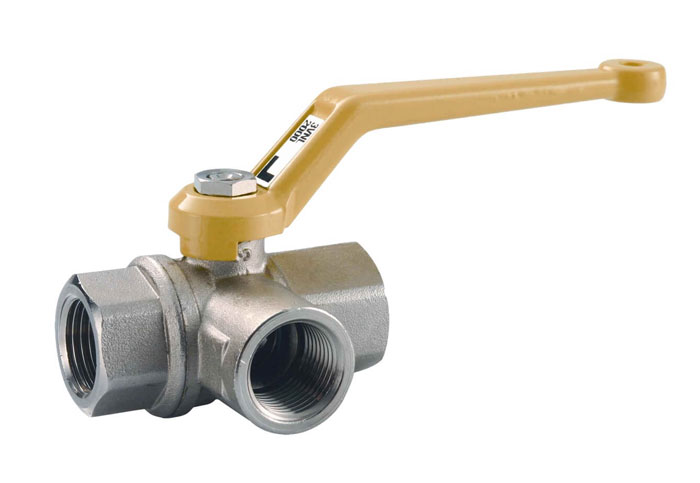

RK-Ball-o-top 3VL 2000
Three-way brass ball valve, threaded ends, L-bore.
Features
- DN 1/4" - DN 2"
- three-way ball valve
- soft seated
- floating ball
- L-bore
- FTF dimensions acc. to producers standard
- threaded ends acc. to EN 10226-1
- full bore
| Material | Material Code | Nominal diameter | Pressure | Temperature |
|---|---|---|---|---|
| brass | Ms 58 | DN 1/4" - DN 2" | PN 16 | -20°C up to +150°C |
