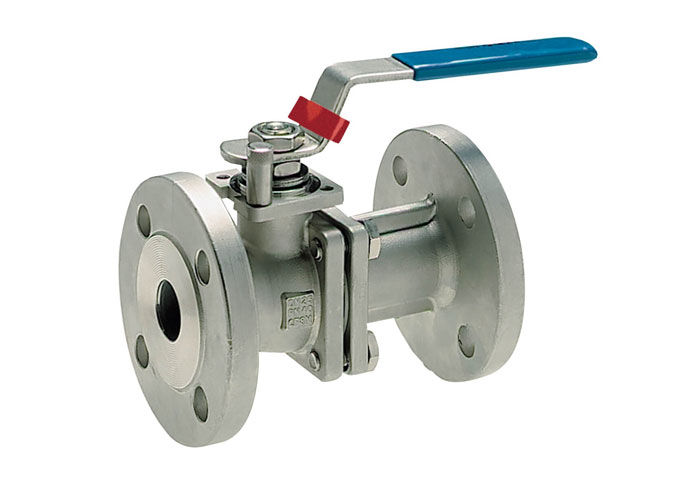

RK-Proball KH 2T F-FS
Two-piece ball valve, flange connection.
Features
- DN 15 - DN 100
- two-piece split body
- soft seated
- floating ball
- safety spring locking device (optional)
- top flange DIN EN ISO 5211
- certified acc. to German clean air act VDI 2440 / Fire-Safe acc. to API 607
- FTF dimensions acc. to EN 558, GR. 1 and EN 558, GR. 27
- flanges acc. to EN 1092
- full bore
| Material | Material Code | Nominal diameter | Pressure | Temperature |
|---|---|---|---|---|
| stainless steel | 1.4408 | DN 15 - DN 100 | PN 40 | -10°C up to +225°C |
| stainless steel | 1.4408 | DN 65 - DN 100 | PN 16 | -10°C up to +225°C |
| carbon steel | 1.0619 | DN 15 - DN 100 | PN 40 | -10°C up to +225°C |
| carbon steel | 1.0619 | DN 65 - DN 100 | PN 16 | -10°C up to +225°C |
