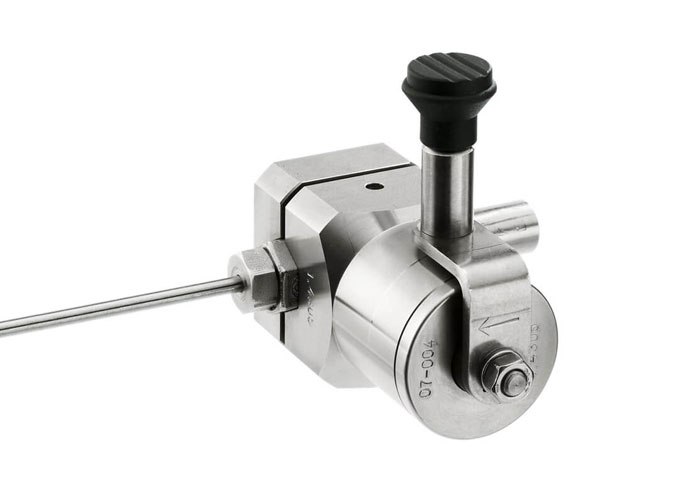

TYPE 300 P with spring close unit TYPE 43
Sampling device ball valve with sampling tube and spring close unit.
Features
- DN 1/4"
- one-piece body
- soft seated
- floating ball
- sampling tube with 2mm inside diameter
- FTF dimensions acc. to producers standard
- female threaded ends acc. to EN 10226-1 with screwed butt weld end connection
- spring close unit TYPE 43
| Material | Material Code | Nominal diameter | Pressure | Temperature |
|---|---|---|---|---|
| stainless steel | 1.4408 | DN 1/4" | PN 63 | -10°C up to +210°C |
