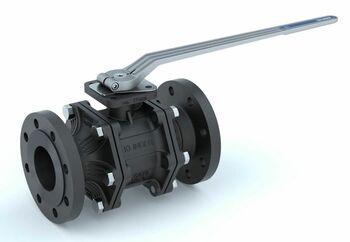

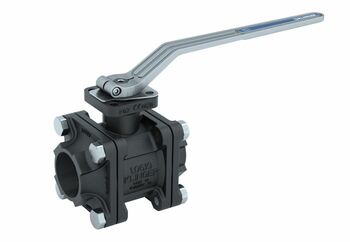

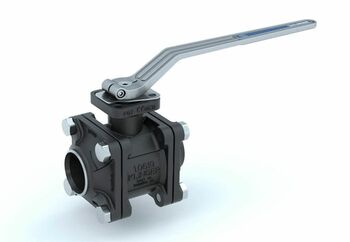

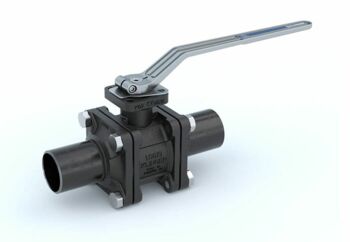

KLINGER Ballostar-KHA - Three-piece Ball Valve

One product - many applications!

The KLINGER Ballostar KHA is a top-class three-piece ball valve from KLINGER. The ideal valves for automation.

Product Advantages

  • Maintenance-free
  • Supports pressurization on both side
  • Bidirectional flow
  • Ball with a cylindrical full bore
  • Unique pre-stressed and elastic sealing system
  • Bidirectional sealing in accordance with EN 12266-1 – Leakage rate A
  • Modular selection of system components
  • Serviceable without removal from the line
  • Antistatic design in accordance with ISO 7121 / EN 1983
  • Subsequent automation possible at any time
  • Top flange acc. to EN ISO 5211


  • Actuators (directly or via mounting kit)
  • Stem extension

Special Design

  • Metal seat for abrasive media
  • Operating stem sealed by O-rings
  • Oxygen version (oil, grease and silicone-free)
  • Cryogenic version
  • Ball valve for application in gas and vacuum

Certificates and Approvals

  • Fire-Safe acc. to API 607/4th Edition and EN ISO 10497:2004
  • Emission-tested acc. to VDI 2440
  • Approved for use with oxygen
  • Valve for gas distribution (ÖVGW)

General Information

The specified pressure and temperature values showing the maximum range for orientation only. For the necessary design please note the pt diagram in the respective data sheet. Main criterion of the material code is the basic material of body and cap. The performance and service life of KLINGER valves depend to a large extent on proper storage and fitting - factors beyond the manufacture’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our operating instructions.

Overview series KLINGER BALLOSTAR KHA Ball valves
