Mehrwegekugelhahn

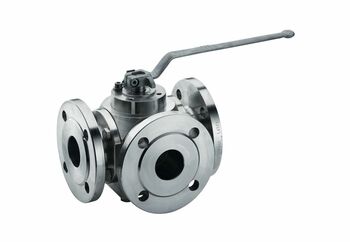

INTEC K400 - Multiple way ball valves

Multiple way ball valve of the modular INTEC system technology!

The universal multiple way ball valve in the unit construction system of the INTEC K200 series. With 3-, 4- or 5-way applications, your medium is safety in flow!

Product Advantages

  • Equipped with all advantages of the series INTEC K200
  • Full bore
  • T- or L-bore
  • Overlap free ports available (optional)
  • Top flange DIN EN ISO 5211
  • Standard length EN and ANSI

Accessories

  • Heating jacket
  • Hand lever extension
  • Stem extension
  • Block unit - padlock unit
  • Grid unit
  • Hand lever with bayonet locking
  • Gear (hand operated)

Special Designs

  • Special materials like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc.
  • Higher pressure ratings and temperatures on request
  • Other face to face dimensions on request

Certificates and Approvals

  • Certified acc. to German clean air act VDI 2440 and DIN EN ISO 15848-1 (in process)
  • ATEX 2014/34/EU

General Information

The specified pressure and temperature values showing the maximum range for orientation only. For the necessary design please note the pT diagram in the respective data sheet. Main criterion of the material code is the basic material of body and cap. The performance and service life of KLINGER valves depend to a large extent on proper storage and fitting - factors beyond the manufacture’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our operating instructions.

Overview series INTEC K400 Multiple way ball valves
